Non-invasive Road Weather Camera

2DRoad

Enquire for price
Order
  • 2 dimensional (2D) road detection
  • 4096 simultaneous sensing points
  • 8 road surface conditions & fog detection

More info

Product Info

Parameters

Detection PrincipleNear-infrared spectroscopy
Road ConditionsDry, Moist, Wet, Slush, Frost, Snow, Bright Ice, Black Ice
Detection AreaUp to 6 x 6 m
Water & Ice Layer Thickness0 to 2 mm, resolution 0.01
Snow & Slush Layer Thickness0 to 10 mm, resolution 0.01
Dimensionless Frictionµ: 0 to 1, resolution 0.01
Road Surface Temperature Range-40 to +60 °C, resolution 0.1
Temperature Sensor Accuracy±0.3 °C
Dew Point Range-40 to +60 °C, resolution 0.1, with external sensor
Data Refresh RateEvery 6 minutes, i.e. 10 measurements / hour
Data ConnectivityEmbedded 4G / LTE Modem
Operating Temperature-40 to +60 °C
Power Supply110 - 230 VAC
Power Consumption (Heating Off)<35 W continuous, 110 W peak
Power Consumption (Heating On)<285 W continuous, 360 W peak
Installation Height6 - 8 m, at 10 to 60°, on pole or portal
Sensor Dimensions & Weight133 x 294 x 327 mm, 9 kg
Flasher Dimensions & Weight289 x 290 x 303 mm, 6 kg
Cabinet Dimensions & Weight1000 x 600 x 240 mm, 54 kg
Ingress ProtectionIP 65
Cable Length6 m cabling between Cabinet and Sensor

Downloads

Brochure (PDF 3,26 MB)

Installation

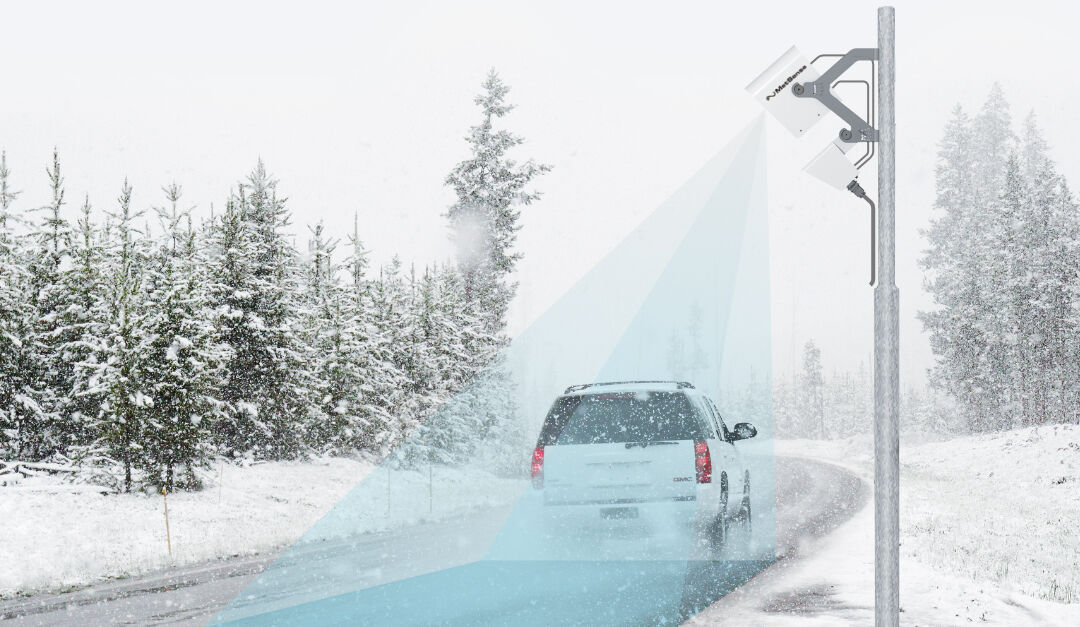

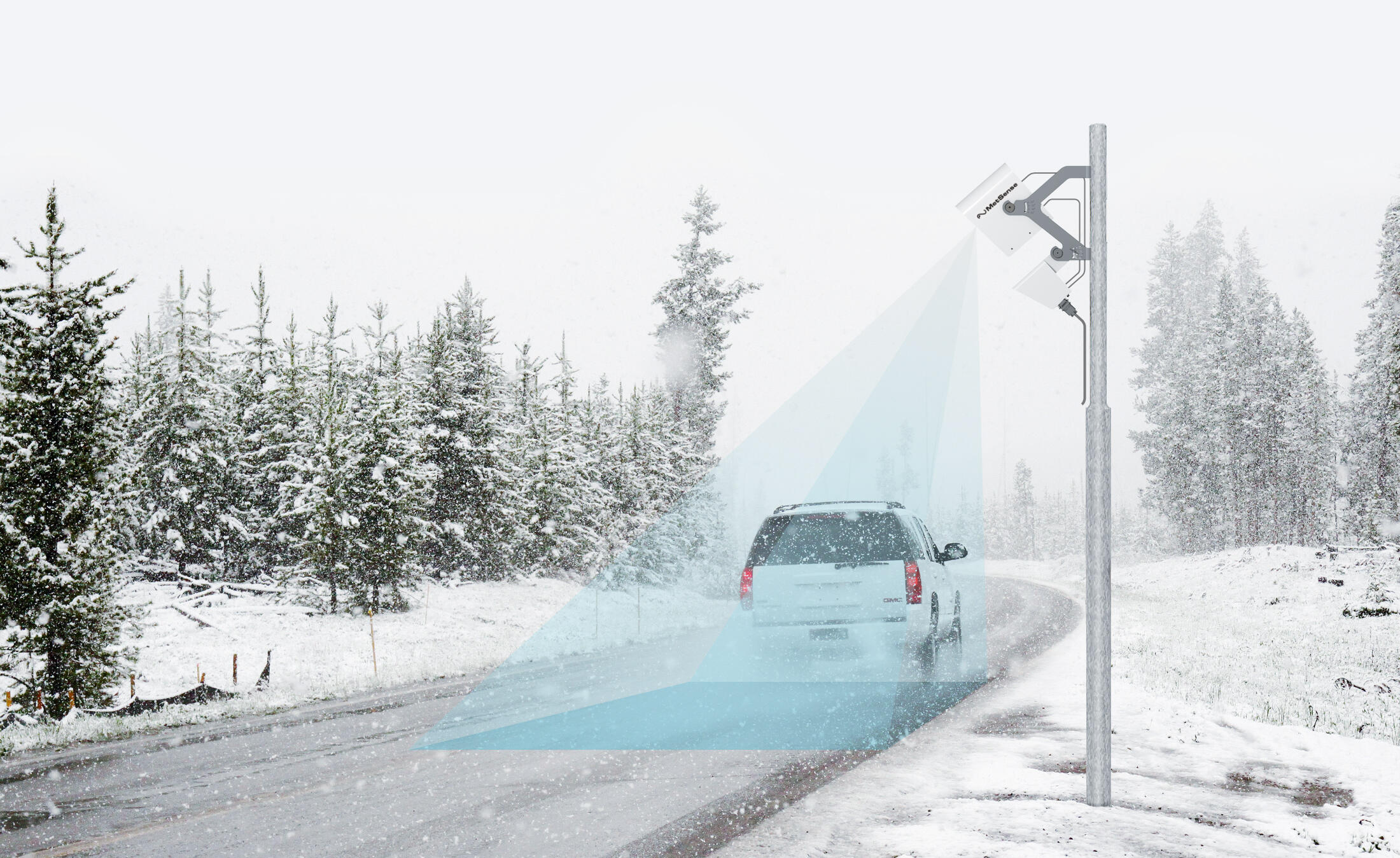

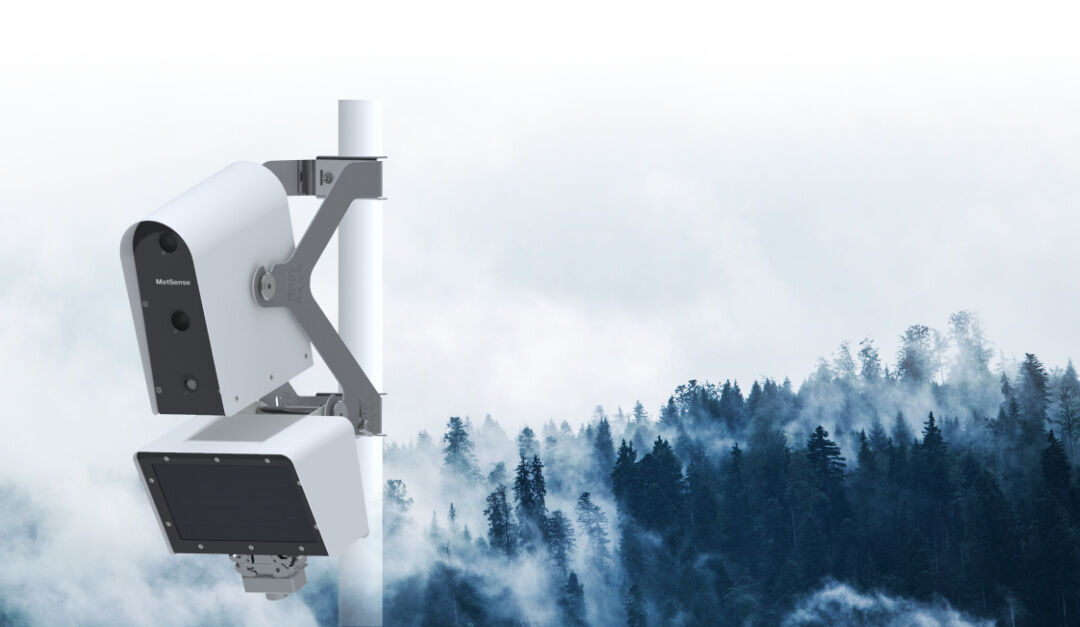

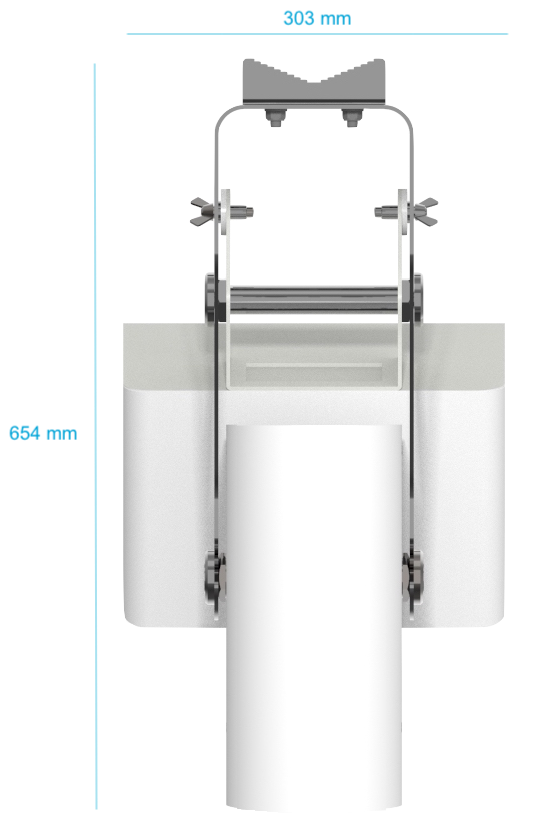

The sensor and the flasher can be mounted on any post or portal using stock clamps. Measuring distance can vary between 4 and 8 metres with an inclination angle between 10 and 60 degrees from the vertical. Sensor height defines the extent of the scanned area - as small as a single lane, but as large as two full lanes.

See Visual Output

Product

Visual Outputs

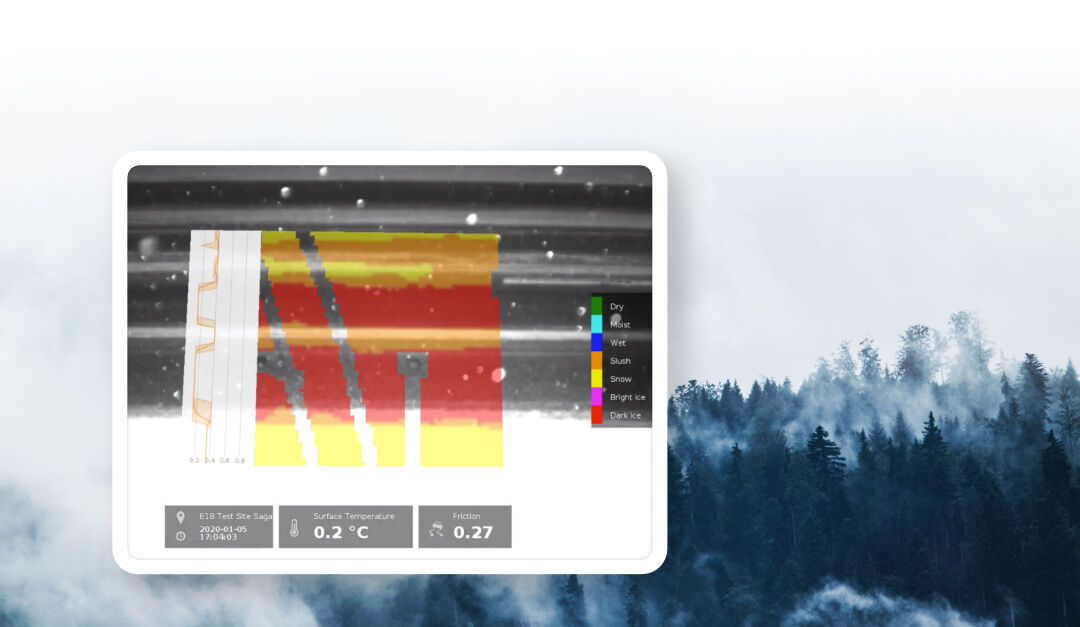

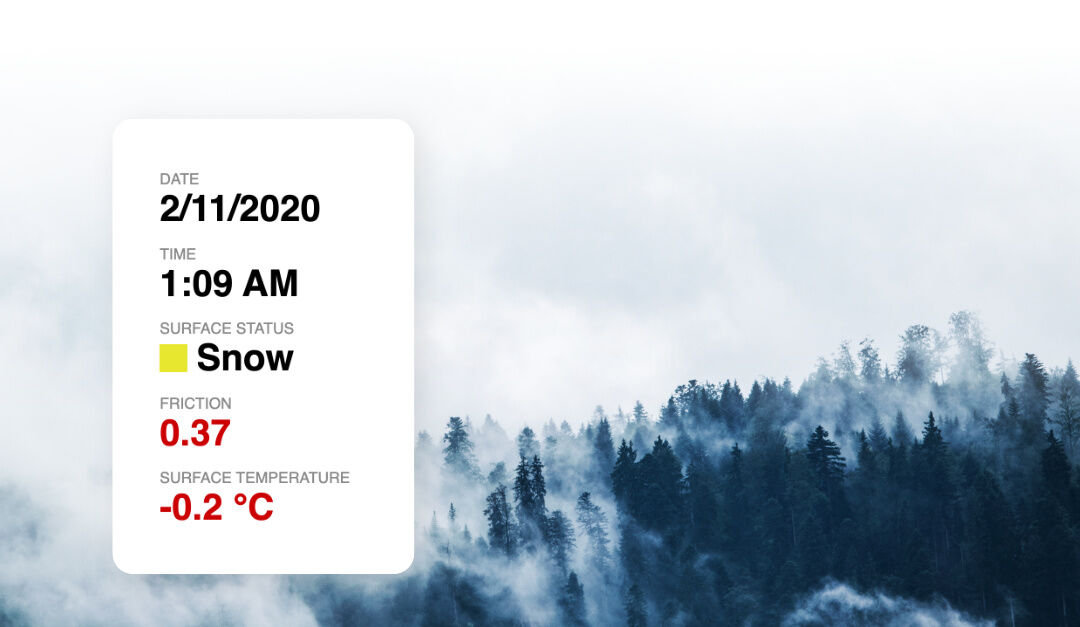

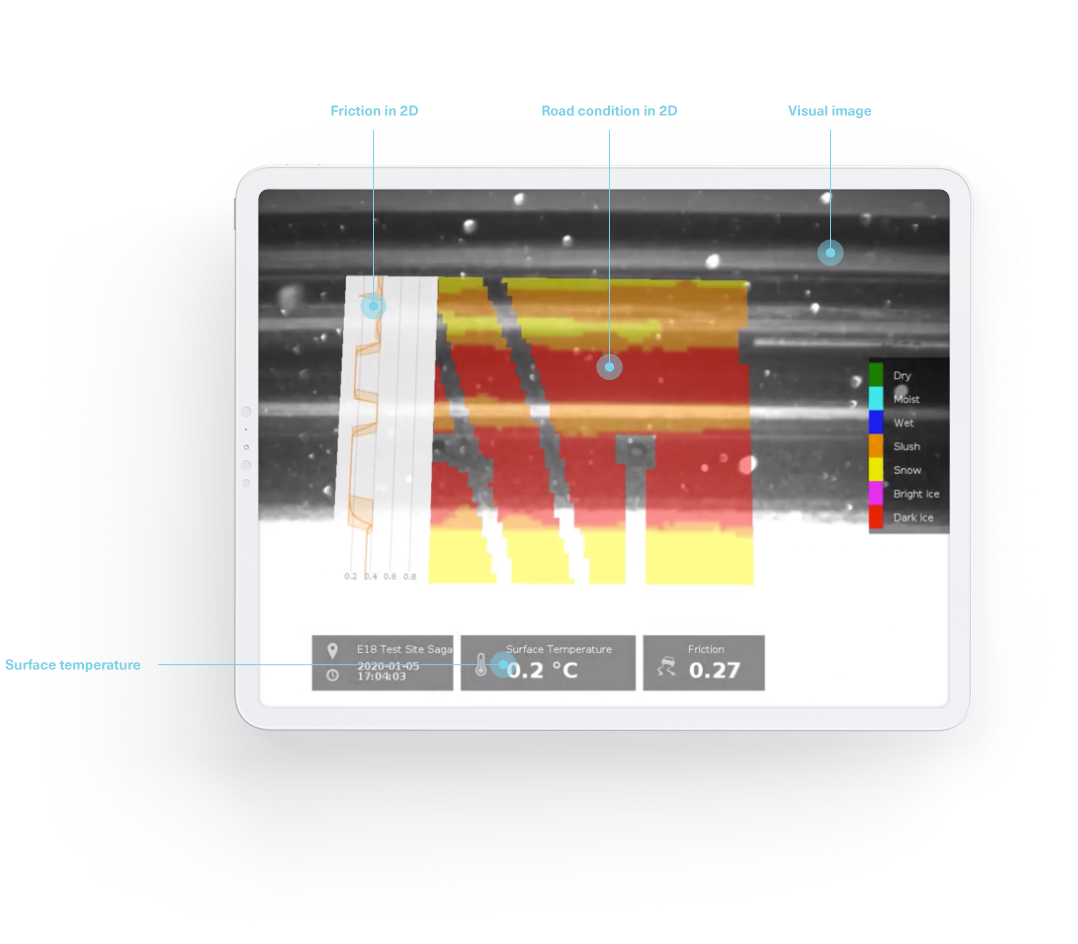

The camera takes a conventional grayscale image with every measurement which is the foundation of user output. The classified road status is presented as a colored overlay. This gives a clear graphic representation of present road conditions.

Visit our Youtube Channel to see output videos of the 2DRoad.
